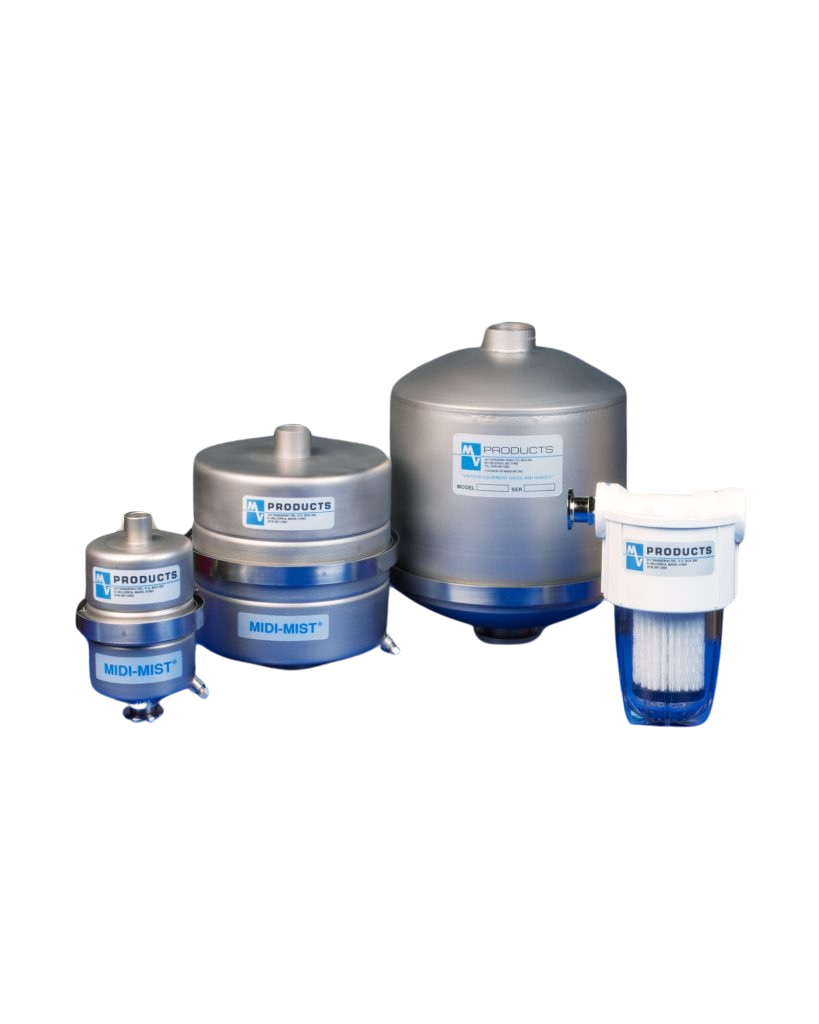

Oil Mist Eliminators VISI-MIST®
Visible protection from oil “smoke” and vapors
- Removes oil mist from vacuum pump exhaust
- Clear sump provides easy visual inspection of filter condition
- Coalescing filters require little maintenance
- Prevents oil residue from settling on walls, floors, furniture, and equipment
- Modular design makes the unit easier to disassemble and clean
- Element replacement is fast and easy
- Water or refrigerant cooling option is available
When you start a vacuum pump, a cloud of gray “smoke” comes out of the exhaust. That’s a mist of pump fluid. After the pump has been running for a while, you may not see the mist, but it’s still there. If you’ve ever touched a sticky tabletop near a vacuum pump, you know that cleaning up after oil mist is no joke.
An MV VISI-MIST® oil mist eliminator attaches to your pump’s exhaust line, directing the exhaust through a pleated, low-resistance microfiberglass coalescing filter that removes mist before it gets into the room air. The clear styrene sump provides direct inspection of the status of the filter without disassembly.
Specifiations
Installation Drawing
Ordering Information
Specifiations
| Construction | Polypropylene housing; styrene acrylonitrile sump. |
| Connectors | Up to 1″ (25 mm). VisiMist requires a hose connec- tor or 25 mm NW flange termination and an adapter for the make and model vacuum pump. |
| Mountings | Above pump or to the side. |
| Filter | Pleated microfiberglass. |
| Dimensions | |
| Diameter: 5.5″ (140 mm) | |
| Height: 9.1″ (231 mm) | |
| Weight: 2.5 lbs. (1.1 kg) | |

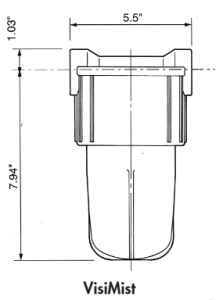

Installation Drawing
Ordering Information
| Description | Part Number |
| VisiMist Oil Mist Elminator with filter element | 360500 |
| VisiMist Fittings | |
| NW 25 Flange—for VisiMist Intake. | 301025 |
| Hose termination 3/4″—an alternative for the NW 25 flange. | 301075 |

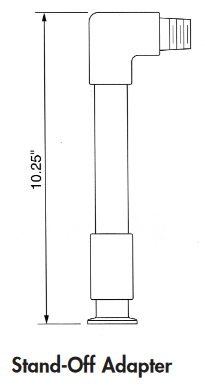

| NW 25 Stand-Off Adapter—for mounting VisiMist above the pump. Connects to VisiMist on short arm, terminates in NW 25 flange on long arm. |
301100 |
| Pump Mountings | |
| Pump Exhaust Adapter—to NW 25 (Specify pump manufacturer and model number.) Not required if pump exhaust terminates in an NW 25 flange. |
301110* |
| NW 25 Elbow—for vertical orientation of VisiMist. Connects to NW 25 flanges. | 301425 |
| NW 25 Blank Flange—for custom-made adapters.30″Hg / 30 psi | 301125 |
| Connectors | |
| NW 25 Clamp—for joining two NW 25 flanges. Requires NW 25 Centering Ring (below). |
301225 |
| NW 25 Centering Ring—includes one “O” ring. | 301325 |
| NW 25 “O” ring—spare “O” ring for replacements. | 301525 |
| Filters | |
| Microfiberglass Coalescing Filter Element (15% discount in lots of 10 or more) |
360905 |
Midi-Mist™
Higher capacity oil mist eliminators
- Stainless steel construction resists corrosion
- Drain plug for easy recovery of pump fluids
- Band clamp closure makes disassembly and cleaning quick and easy
The MIDI-MIST 4 and the MIDI-MIST 8 offer the same high efficiency provided by VISI-MIST®, but at a higher capacity for larger pumps and more demanding installations. Select the MIDI-MIST oil mist eliminator that best matches your vacuum pump: MIDI-MIST 4 fits pumps with inlet ports up to 1.5″ diameter; MIDI-MIST 8 works with pumps with inlet ports up to 2″ diameter.
Specifiations
Installation Drawing
Ordering Information
Specifiations
| Construction | Stainless steel |
| Connectors | 360300 25mm flange on pump side, 1″ hose termination on exhaust port |
| 360200 40mm flange on pump side, 1 1/2″ hose termination on exhaust port |
|
| Filters | Pleated low-resistance microfiberglass replaceable filter elements |
| Dimensions | |
| 360300 | Diameter: 4″ (102 mm) |
| Overall height: 7.85″ (199 mm) | |
| Weight: 3 lbs (1.4 kg) | |
| 360200 | Diameter: 8″ (203 mm) |
| Overall height: 9.95″ (252 mm) | |
| Weight: 10 lbs (4.5 kg) | |

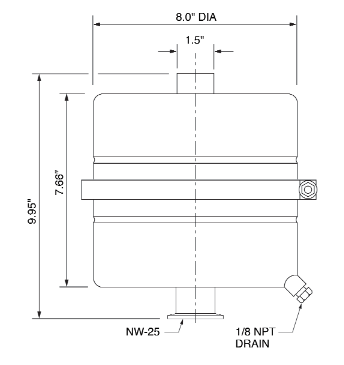

Installation Drawing
Ordering Information
| Description | Part Number 4″ Midi-Mist |
Part Number 8″ Midi-Mist |
| MIDI-MIST oil mist eliminator 4″ model includes one microfiberglass coalescing filter element 8″ model includes 3 filter elements |
360300 | 360200 |
| Accessories | ||
| NW 25 x 3/4″ pump adapter | 301025 | — |
| Pump exhaust adapter to NW 25 (Specify the pump manufacturer and model number) |
301110* | — |
| NW 25 to Welch Model 1402 | 301112 | — |
| NW 25 to Welch Model 1397 | 301111 | — |
| NW 25 clamp | 301225 | — |
| NW 25 centering ring | 301325 | — |
| NW 25 Macrovac 90° elbow | 301425 | — |
| NW 25 spare O-ring | 301525 | — |
| NW 40 x 3/4″ pump adapter | — | 301040 |
| Pump exhaust adapter to NW 40 (Specify the pump manufacturer and model number) |
— | 301115* |
| NW 40 to Welch Model 1402 | — | 301114 |
| NW 40 to Welch Model 1397 | — | 301113 |
| NW 40 clamp | — | 301240 |
| NW 40 centering ring | — | 301340 |
| NW 40 Macrovac 90° elbow | — | 301440 |
| NW 40 spare O-ring | — | 301540 |
| Spare Parts | ||
| Microfiberglass coalescing filter element (Quantity discounts for 10 or emore) |
360915 | 360915 |
| O-ring | 331003 | 341005 |
Maxi-Mist™
Our highest capacity oil mist eliminator
- High-capacity coalescing filters drain oil into a large reservoir for easy recovery
- Designed for large capacity vacuum pumps
MAXI-MIST™ is our flagship oil mist eliminator, offering all the features and capabilities of the MIDI-MIST series, with higher capacity for large vacuum pumps. Designed for pumps of up to 300 CFM capacity, the MAXI-MIST™ features a parallel bank of five pleated low density microfiberglass coalescing filters. The large capacity oil reservoir can be connected directly back to the pump to recirculate recovered oil, or drained for disposal through a handy drain port.
Specifiations
Installation Drawing
Ordering Information
Specifiations
| Construction | Stainless steel |
| Connectors | 50mm NW flange on pump side; 1.5″ NPT at exhaust port |
| Filters | Parallel bank of five plated microfiberglass filter ele- ments. Pore size: 0.1 micron |
| Dimensions | |
| Diameter: 10″ (254 mm) | |
| Overall height: 13.5″ (343 mm) | |
| Weight: 15 lbs. (6.8 kg) | |
Installation Drawing
Ordering Information
| Description | Part Number |
| MAXI-MIST oil mist eliminator Includes five microfiberglass coalescing filter elements and drain plug |
360000 |
| Accessories | |
| NW 50 clamp | 301250 |
| NW 50 centering ring | 301350 |
| NW 50 elbow | 301450 |
| Spare Parts | |
| Microfiberglass coalescing filter element (quantity discounts for 10 or more) | 360915 |
| NW 50 O-ring | 301550 |
| Drain valve | 371018 |
