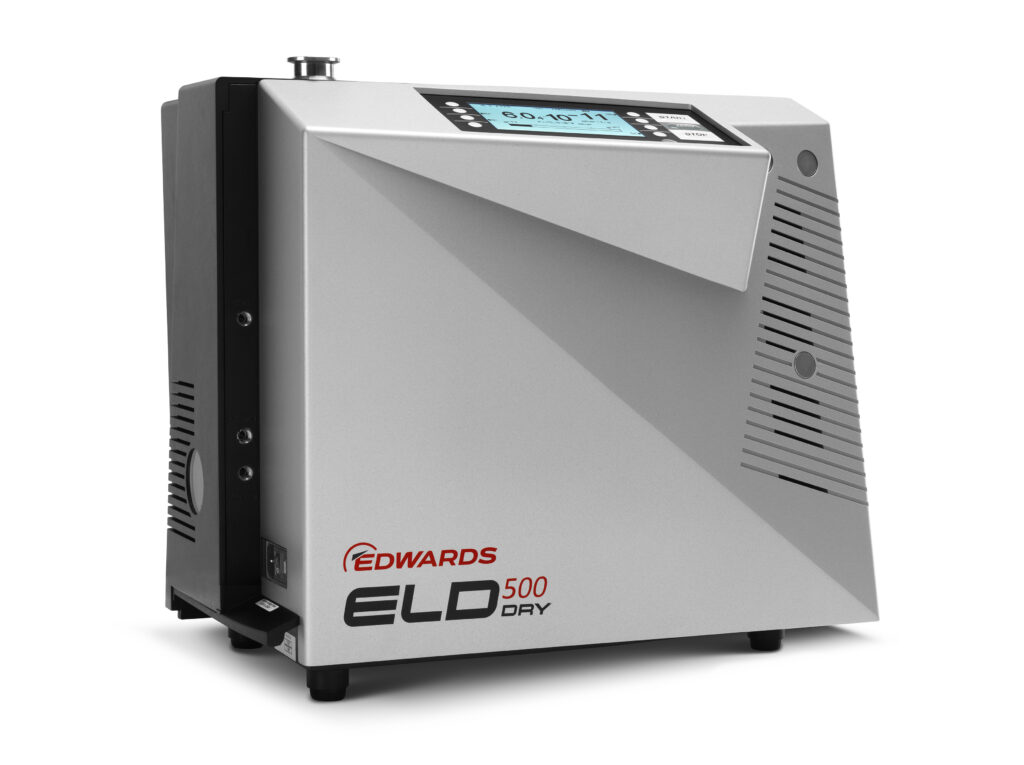

ELD500 Precision Leak Detector
The Edwards ELD500 fully automated leak detector is designed for fast, accurate leak detection in a wide range of applications and is fully mobile with an easy to use control interface.
Edwards ELD500 is your perfect partner in leak detection.
- Low cost of ownership
- Ready to go mobile solution
- Customizable for any application
- High stability and accuracy
Low cost of ownership
The proven design of the ELD500 leak detector, combined with low energy consumption, extended warranty and even longer life ion source, ensures exceptional low cost of ownership with no compromise on performance.
- High efficiency and low operating power consumption
- Highly reliable product with long maintenance intervals and low part replacement requirements
- Long life Ion source with a 30 month warranty
Product Datasheet
| ELD500 Leak Detector | Units | ELD500 | ELD500 DRY | ELD500 FLEX |
Lowest detectable helium leak rate |
||||
Vacuum operation |
mbar ls-1 |
≤ 5 x 10-12 |
≤ 3 x 10-10 |
≤ 5 x 10-12 |
Sniffer operation |
mbar ls-1 |
≤ 7 x 10-9 |
≤ 7 x 10-9 |
≤ 7 x 10-9** |
Maximum measurable helium leak rate |
||||
Vacuum operation |
mbar ls-1 |
> 0.1 |
> 0.1 |
> 0.1 |
Measurement ranges |
decades |
12 |
12 |
12 |
Maximum permissible inlet pressure |
mbar |
15 |
15 |
15 |
Pumping speed during pumpdown, 50 Hz/60 Hz |
m3h-1 |
2.5/3 |
1.6/1.8 |
N/A |
Helium pumping speed in the fine mode |
ls-1 |
3.1 |
3.1 |
3.1 |
Time constant for leak rate signal |
s |
< 1 |
< 1 |
< 1 |
Time until ready for operation |
s |
≤2 |
≤2 |
≤2 |
Power consumption |
VA |
420 |
350 |
200 |
Inlet flange |
NW25 |
NW25 |
NW25 |
|
IP protection class |
IP |
40 |
40 |
40 |
Dimensions (WxHxD) |
mm |
495x456x314 |
495x456x314 |
495x456x314 |
Weight |
kg |
40 |
35.5 |
30 |
Ordering Information
Product Description |
Order Number |
ELD500, 200-240V,50/60Hz |
D13510903 |
ELD500, 100-120V, 50/60Hz |
D13510904 |
ELD500, 100-120V, 60Hz |
D13510906 |
ELD500 DRY, 200-240V,50/60Hz |
D13520903 |
ELD500 DRY, 100-120V, 50/60Hz |
D13520904 |
ELD500 DRY, 100-120V, 60Hz |
D13520906 |
ELD500 FLEX, 100-240V,50/60Hz |
D13530000 |
ELD500 RC - Wired - Remote control |
D13550100 |
ELD500 RC - Wireless - Remote control |
D13550110 |
ELD500 RC - Wired - 8m extension cable |
14022 |
ELD500 RC - Wireless - Extra transmitter |
D13550130 |
ELD500 SL - Standard sniffer line 4m |
D13550300 |
ELD500 SL - Extended SL Interface |
D13550200 |
ELD500 SL - Extended sniffer line 5m |
14008 |
ELD500 SL - Extended sniffer line 20m |
14009 |
Product Description |
Order Number |
ELD500 SL - Extended sniffer line 50m |
12183 |
ELD500 Partial flow adaptor |
D13550400 |
ELD500 Transport Case |
D13550500 |
ELD500 Cart without Ebox |
D13550600 |
ELD500 SG - Helium spray gun |
16555 |
CL-Internal calibrated leak |
D13550910 |
CL-Cal Leak bspk. 0.5 - 1E-7. Screw Skt |
D13550930 |
CL-calibrated leak HE 4 to 6 |
D13550950 |
Extended Warranty
Product Description |
Order Number |
Extended warranty from 18 months to 3 yrs |
EW3AA5100 |
Extended warranty from 18 months to 5 yrs |
EW5AA5100 |
